IVGM10~20kW-P3G1

Model IVGM10KLP3G1 IVGM12KLP3G1 IVGM14KLP3G1 IVGM15KLP3G1 IVGM16KLP3G1 IVGM18KLP3G1 IVGM20KLP3G1 Rated AC Power 10 kW 12 kW 14 kW 15 kW 16 kW 18 kW 20 kW Max. PV Input Power 15 kW 18 kW 22.4 kW 24 kW 25.6 kW 28.8 kW 32 kW Max. Charge / Discharge Current 210 A 240 A 260 A 280 A 300 A 330 A 350 A Battery Voltage Range 40-60 V Max.

PV Input Voltage 800 V MPPT Voltage Range 160-650 V Peak Off-Grid Power 2x for 10 s Maximum Efficiency 98%

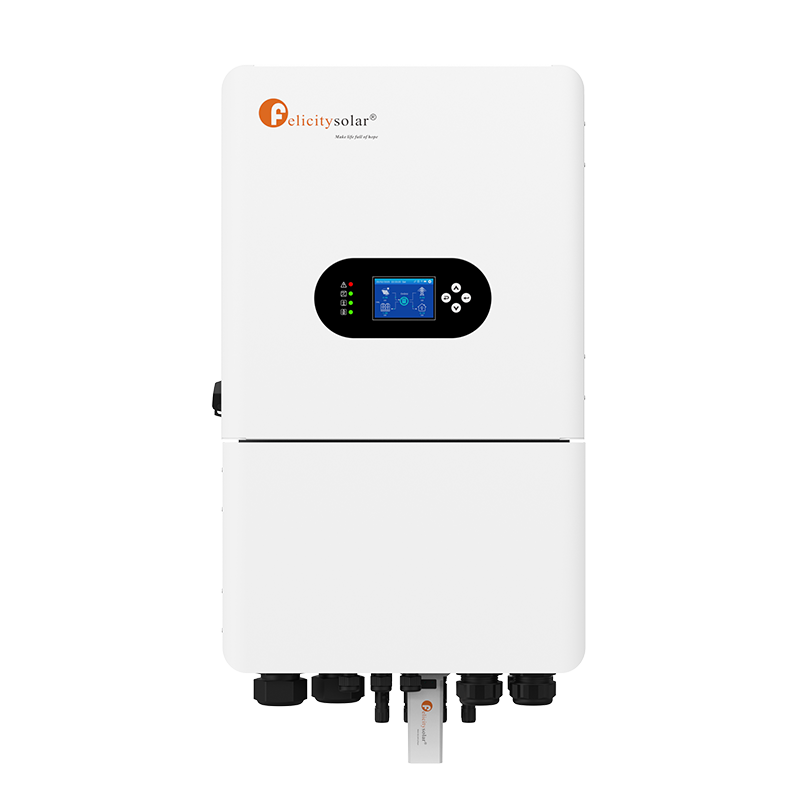

Felicitysolar IVGM Series is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
