IVGM12~16kW-P1G1

Model IVGM12KLP1G1 IVGM14KLP1G1 IVGM16KLP1G1 Rated AC Input/Output Power 12kW 14kW 16kW Peak Power (off-grid) (W) 2 times of rated power, 10s MPPT Voltage Rang 150-425 No.of MPP Trackers/No.of String Per MPP Tracker 3/2+2+2 Max, PV Access Power (W) 24kW 28kW 32kW Grid Connection Form L+N+PE Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 Protection Degree IP65

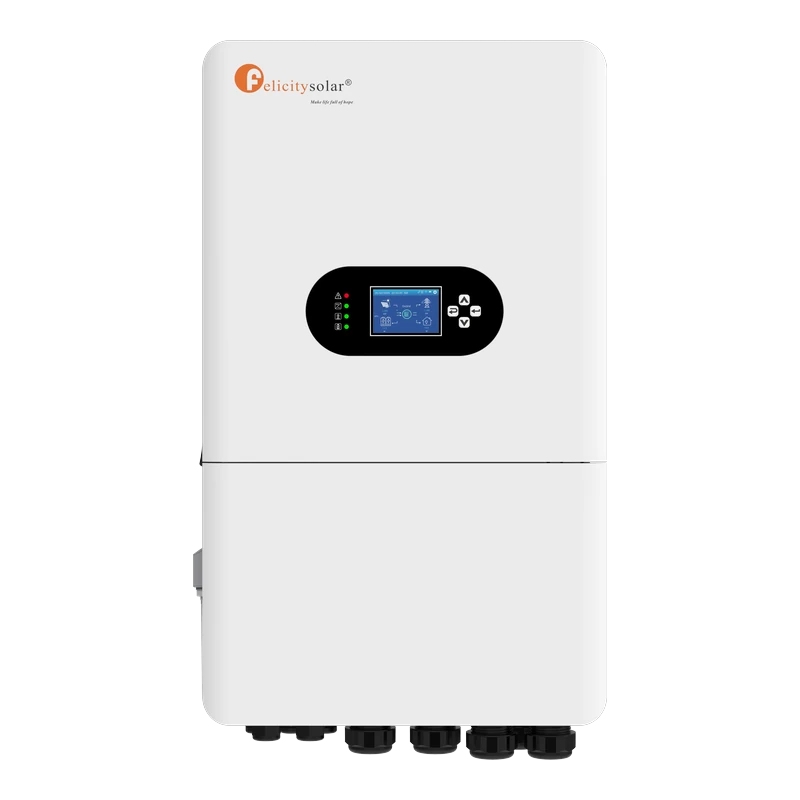

This hybrid solar inverter is designed for residential and small commercial applications, providing stable power supply through the integration of: 1. PVmodules 2. Battery storage systems 3. Utility grid and optional generator It supports both on-grid and off-grid operation, ensuring power availability during grid outages.
