IVGM75~125kW-P3G1

Model IVGM75KHP3G1 IVGM80KHP3G1 IVGM100KHP3G1 IVGM125KHP3G1 Rated AC Input / Output Power 75 kW 80 kW 100 kW 125 kW Max. AC Input / Output Power 82.5 kVA 88 kVA 110 kVA 137 kVA Max. PV Input Power 150 kW 160 kW 200 kW 250 kW Max. DC Input Voltage 1,000 V MPPT Voltage Range 150-850 V Number of MPPT Trackers 8 10 Battery Voltage Range 160-1,000 V Battery Inputs / Max.

Charge & Discharge Current 2 / 120 A + 120 A

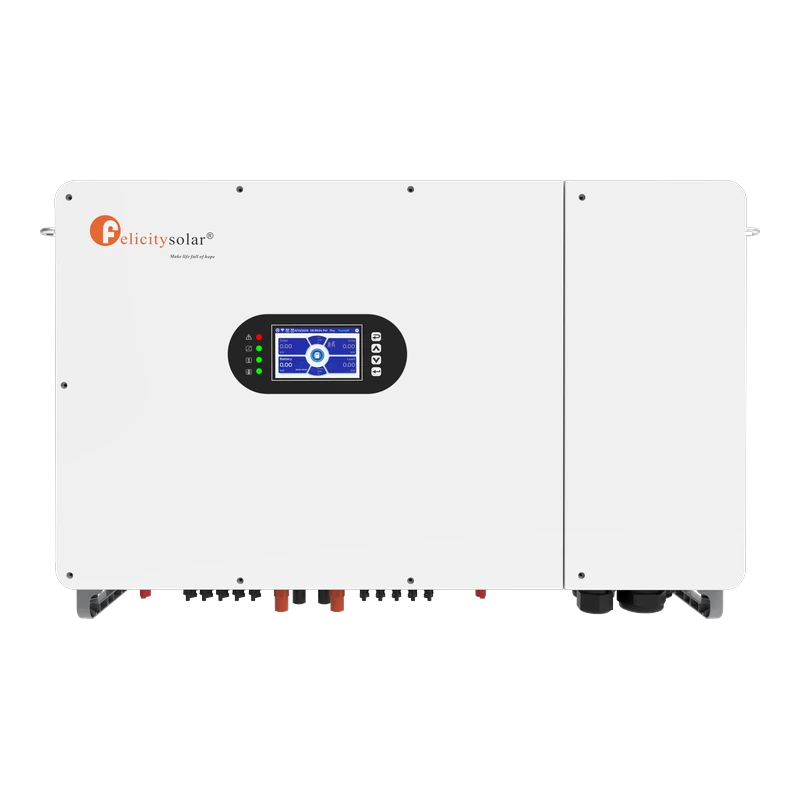

The 125kW hybrid solar inverter is designed for commercial and industrial energy storage. It ensures 0ms grid-to-off-grid transfer for uninterrupted power and supports single-phase input with three-phase output. Supports 200% PV oversizing and dual independent battery inputs for maximum flexibility and solar utilization.

Active PID recovery ensures long-term performance, while up to 12 units in parallel enable scalable system expansion. Compatible with generators, smart loads, and microinverters, the inverter features IP66 protection and broad grid standard compatibility. Remote monitoring via the Fsolar APP enables intelligent, efficient energy management.
