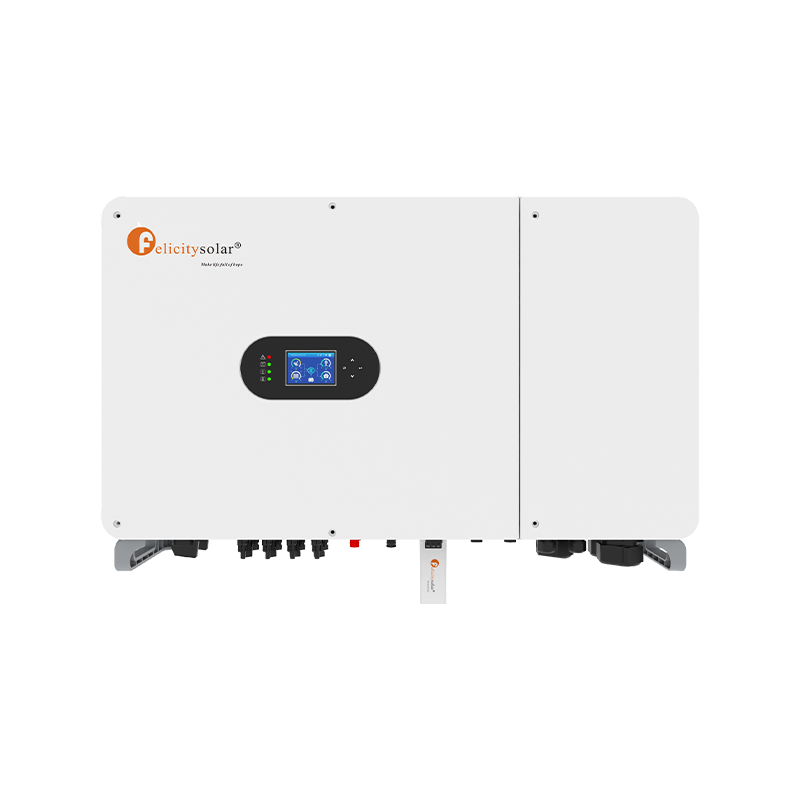

IVGM25~50kW-P3G2

This IP65-rated 50kW hybrid inverter features an LCD touchscreen for user-friendly parameter configuration. With multiple PV input channels, it optimizes energy yield, and up to 12 units can be connected in parallel to scale up system capacity. It also supports generator, smart load and microgrid connections. The dual independent battery inputs effectively reduce inter-cluster circulation.

Ideal for small- to medium-scale commercial applications such as factories, supermarkets, hotels, and others. Note: We also offer other inverters with various power ratings from 25kW to 50kW, allowing users to build solar energy systems that best fit their needs.

Model IVGM50KHP3G2 IVGM40KHP3G2 IVGM30KHP3G2 IVGM29K9HP3G2 IVGM25KHP3G2 Rated AC Input/Output Power 50 kW 40 kW 30 kW 29.9 kW 25 kW Max. PV Input Power 80 kW 64 kW 48 kW 47.84 kW 40 kW Max. Charge / Discharge Current 50+50 A 50+50 A 50+50 A 50+50 A 50+50 A Battery Voltage Range 160–800 Vdc Max.

PV Input Voltage 1000 Vdc MPPT Voltage Range 150–850 Vdc Peak Off-Grid Power 1.5× rated power for 10 s Maximum Efficiency 97.6%
