BTCB0606-0303

Model BTCB0606-120 BTCB0606-200 BTCB0303-120 BTCB0303-200 Product type Battery combiner box Maximum number of input paths 6 3 Branch rated voltage 80 V / 80 V / Branch rated current 125 A 200 A 125 A 200 A Battery switch PEBS-L / PEBS-L / Mounting Wall mounted Accessories Screws, lifting lugs, wall fasteners System role Battery pack combiner

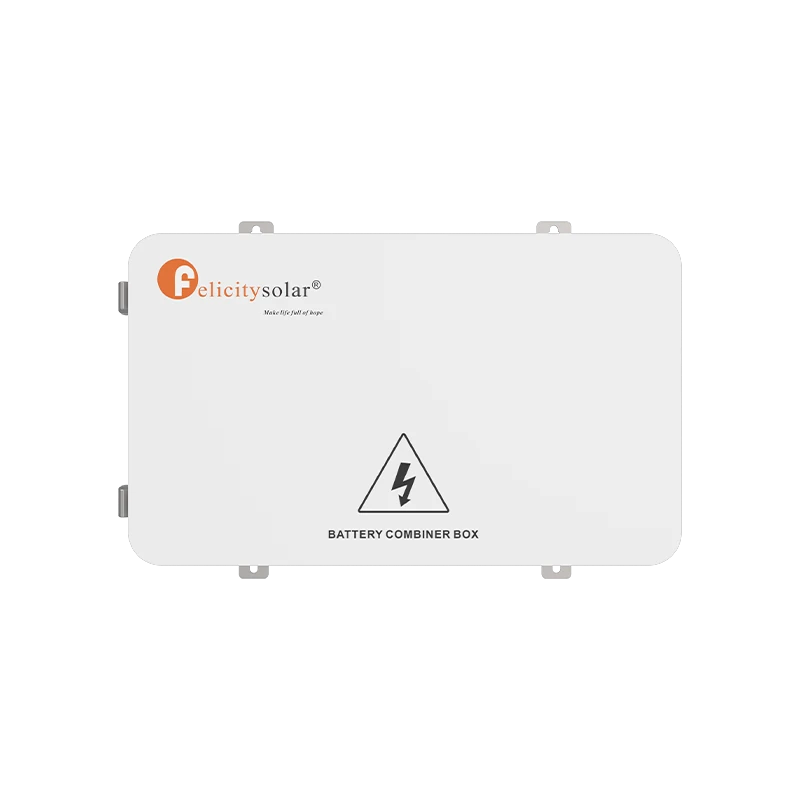

The BTCB series battery combiner box is designed for battery pack combiner box systems, available in four models: BTCB0303-120, BTCB0303-200, BTCB0606-120, and BTCB0606-200. The BTCB0606 models support up to 6 input paths, while the BTCB0303 models support up to 3 input paths.

Branch rated voltage is 80V for the 120 models, with branch rated current of 125A for the 120 models and 200A for the 200 models. The 120 models include a PEBS-L battery switch. The product integrates multiple battery branches into a single output for inverter connection.
